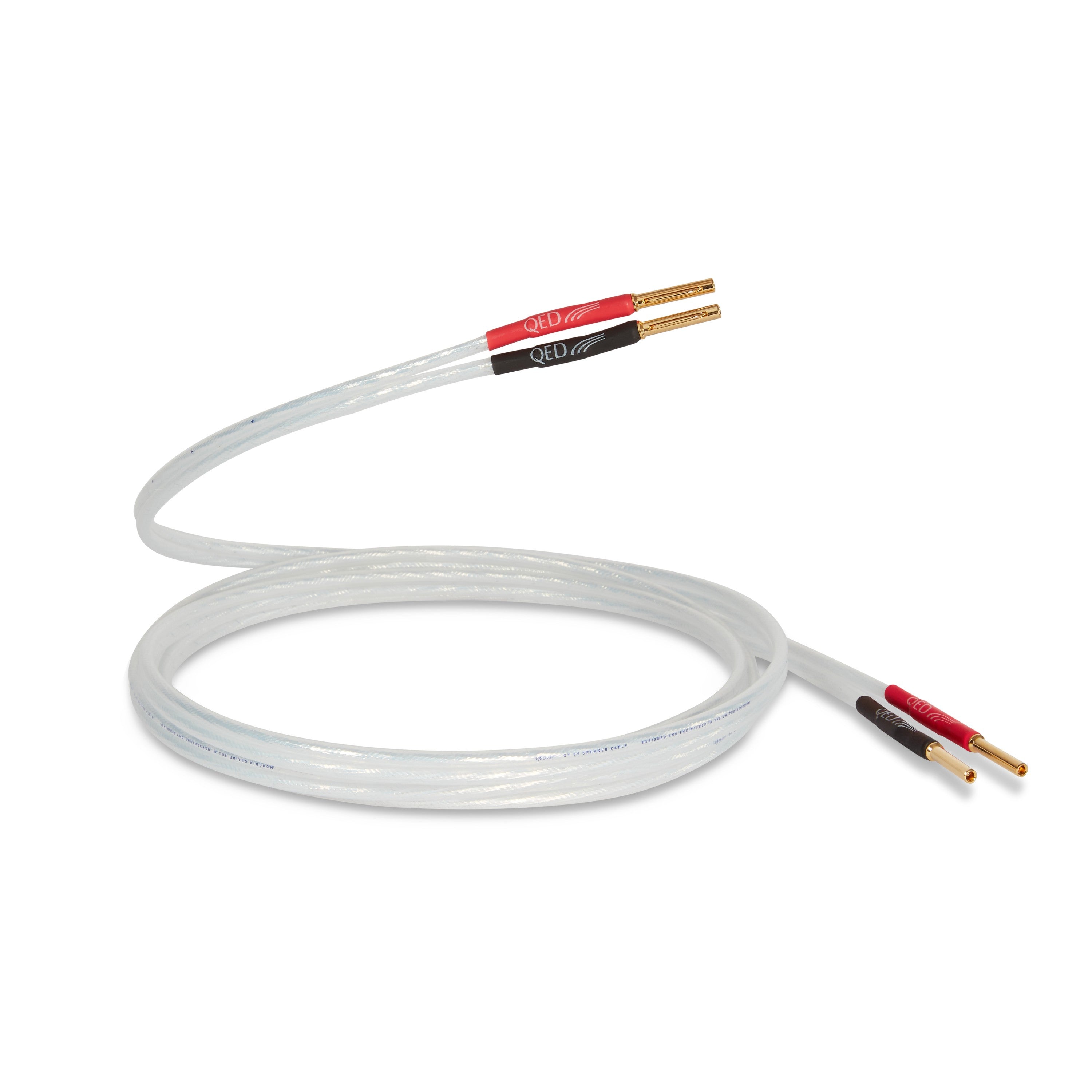

QED XT40i Speaker Cable
- Free worldwide shipping
- In stock, ready to ship
- Backordered, shipping soon
The "i" in XT40i indicates evolution. The original XT40 was already one of the most respected speaker cables at its price point. QED took it as a starting point and added Air Gap dielectric technology, which cuts signal losses roughly in half and produces a cable that is genuinely hard to improve on without spending significantly more money.
Air Gap works by physically separating the conductors from the jacket using a structured air gap. Air has a dielectric constant of 1.0, the theoretical minimum, so replacing solid insulation with an air-dominant structure dramatically reduces the energy stored and wasted in the insulation on every audio cycle. The 4mm cross-sectional area oxygen-free copper conductors keep DC resistance extremely low, and the low self-inductance figure means the cable does not restrict current delivery to the speaker on dynamic peaks.
| Specification | Value |
|---|---|
| Cable type | Speaker cable |
| Conductor material | 99.999% oxygen-free copper |
| Technology | X-Tube, Air Gap dielectric |
| Conductor area | 4 mm² |
| Outside diameter | 6 × 14 mm |
| Dielectric properties | Air Gap (εr = 2.4) |
| Loop resistance | 0.008 Ω/m |
| Parallel capacitance | 35 pF/m |
| Dissipation factor @ 10 kHz | 0.0295 |
| Self-inductance | 0.57 µH/m |
| Termination | Airloc Heat Shrink 4mm banana plugs (Airloc Forte compatible) |
| Available lengths | 2m, 3m, 5m |
