The Ethos is Goldring's premier moving coil cartridge, hand-built in Hertfordshire using the GOL-1 generator. It is one of the finest things made in Britain in the hi-fi space, and it sets a standard for musical engagement and detail retrieval that many more expensive designs fail to match.

At its heart is a cross-shaped armature of pure, high-permeability Swedish iron, around which oxygen-free copper coils are hand wound. Reduced unsprung mass lets the stylus track the groove wall with exceptional precision, minimising crosstalk and producing a sharper, more stable stereo image. A neodymium magnet, clamped between two pole shoes to create a perfectly uniform field gap, gives the Ethos its characteristically flat, extended frequency response from 10 Hz to 32 kHz.

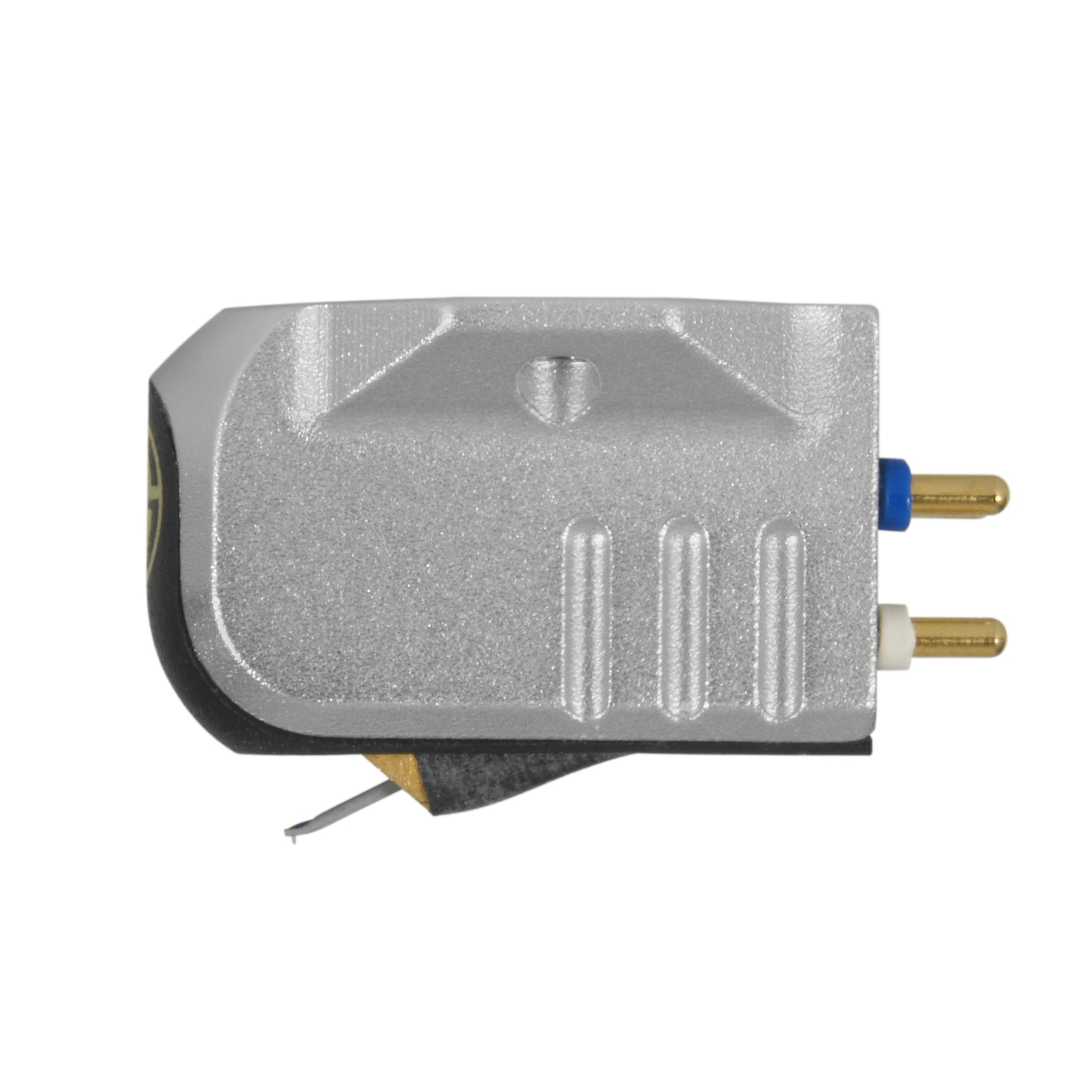

The Vital line-contact stylus on a tuned aluminium alloy cantilever retrieves high frequency groove detail with a large contact area while reducing wear on both stylus and record. A bespoke butyl rubber damper pad and expertly tensioned tie-wire keep the system critically damped and ultra-stable at all volumes. The body is precision-milled from aircraft-grade aluminium to dissipate resonances into the tonearm where they cannot colour the sound.

Low-output moving coil design. Sensitivity 0.5 mV. Requires an MC phono stage or step-up transformer. Load resistance 100 ohms recommended. Tracking weight 1.5 to 2.0 grams. Stylus is factory replaceable.

SpecificationValue
Cartridge typeMoving coil
CantileverAluminium alloy
Stylus profileVital line-contact
Stylus radius8 × 35 µm (0.3 × 1.4 mil)
StylusFactory replaceable
Coil wireOxygen-free copper
Coil windings32 per channel
ArmatureLow-mass cross shape
MagnetNeodymium
BodyAircraft aluminium
Frequency range10 Hz – 32 kHz
Frequency response±2 dB (35 Hz – 18 kHz)
Channel balance<1 dB at 1 kHz
Channel separation>30 dB at 1 kHz
Sensitivity0.5 mV ±1 dB (1 kHz @ 5 cm/s)
Static compliance25 mm/N
Dynamic compliance15 mm/N
Vertical tracking angle20°
Load resistance100 Ω
Load capacitance100–1000 pF
Internal inductance7.5 µH
Internal resistance4 Ω
Cartridge mass7.7 g
Total mass (inc. fixings)8.5 g
Fixing centres12.7 mm (0.5 in)
Playing weight1.5–2.0 g (1.75 g recommended)
SpecificationValue
Cartridge typeMoving coil
CantileverAluminium alloy
Stylus profileVital line-contact
Stylus radius8 × 35 µm (0.3 × 1.4 mil)
StylusFactory replaceable
Coil wireOxygen-free copper
Coil windings32 per channel
ArmatureLow-mass cross shape
MagnetNeodymium
BodyAircraft aluminium
Frequency range10 Hz – 32 kHz
Frequency response±2 dB (35 Hz – 18 kHz)
Channel balance<1 dB at 1 kHz
Channel separation>30 dB at 1 kHz
Sensitivity0.5 mV ±1 dB (1 kHz @ 5 cm/s)
Static compliance25 mm/N
Dynamic compliance15 mm/N
Vertical tracking angle20°
Load resistance100 Ω
Load capacitance100–1000 pF
Internal inductance7.5 µH
Internal resistance4 Ω
Cartridge mass7.7 g
Total mass (inc. fixings)8.5 g
Fixing centres12.7 mm (0.5 in)
Playing weight1.5–2.0 g (1.75 g recommended)
